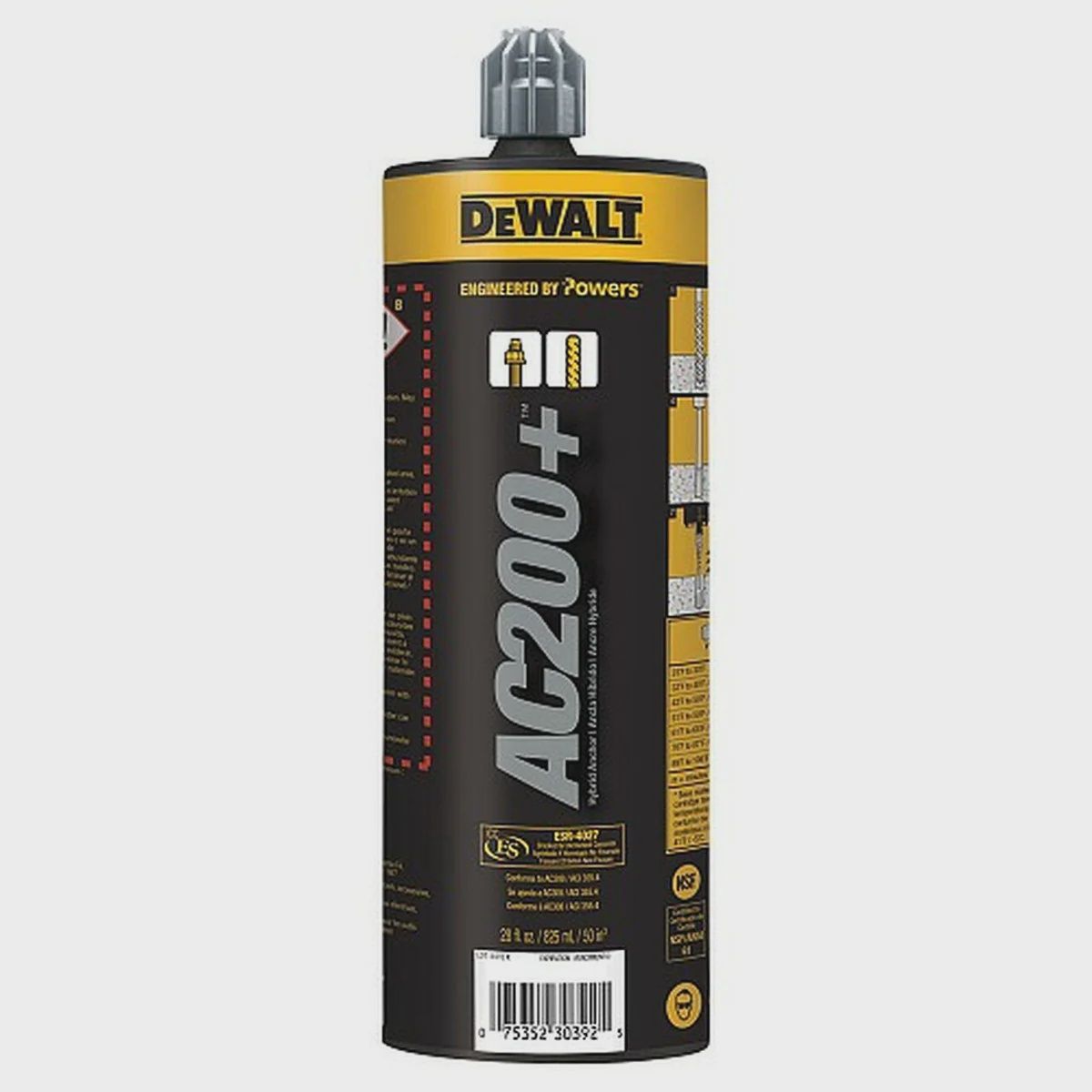

DEWALT DEW-PFC1271150 28oz AC200+ Acrylic Injection Adhesive Anchoring System and Post-Installed Reinforcing Bar Connections

The AC200+ is a two-component, high strength adhesive anchoring system. The system includes injection adhesive in plastic cartridges, mixing nozzles, dispensing tools and hole cleaning equipment. The AC200+ is designed for bonding threaded rod and reinforcing bar hardware into drilled holes in concrete base materials and for post-installed reinforcing bar connections.

Features

• Designed for use with threaded rod and reinforcing bar hardware elements
• Evaluated and recognized for freeze/thaw performance
• Cartridge design allows for multiple uses using extra mixing nozzles
• Mixing nozzles proportion adhesive and provide simple delivery method into drilled holes
• Evaluated and recognized for long term and short term loading

Applications

• Bonding threaded rod and reinforcing bar into hardened concrete
• Evaluated for installation and use in dry and wet concrete
• Fast curing system which can be installed in a wide range of base material temperatures; qualified for structural applications in concrete and masonry as low as 14ºF (-10ºC)
• Qualified for seismic (earthquake) and wind loading

Approvals

• International Code Council, Evaluation Service (ICC-ES) ESR-4027 for cracked and un-cracked concrete
• Code Compliant with the International Building Code/International Residential Code: 2018 IBC/IRC, 2015 IBC/IRC, 2012 IBC/IRC, and 2009 IBC/IRC
• Tested in accordance with ACI 355.4, ASTM E488, and ICC-ES AC308 for use in structural concrete (Design according to ACI 318-14, Chapter 17 and ACI 318-11/08 Appendix D)
• Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and un-cracked concrete including seismic and wind loading
• Compliant with NSF/ANSI 61 for drinking water system components - health effects; minimum requirements for materials in contact with potable water and water treatment
• Conforms to requirements of ASTM C881 and AASHTO M235, Types I, II, IV and V, Grade 3, Class A
